Durr - Duo

SKU: WG-D5252-01
Availability: In stock

Easy to set up. Comes with detailed user and service manuals or you can contact our technical support team at anytime for additional support over the phone on 03-93316796

Duo

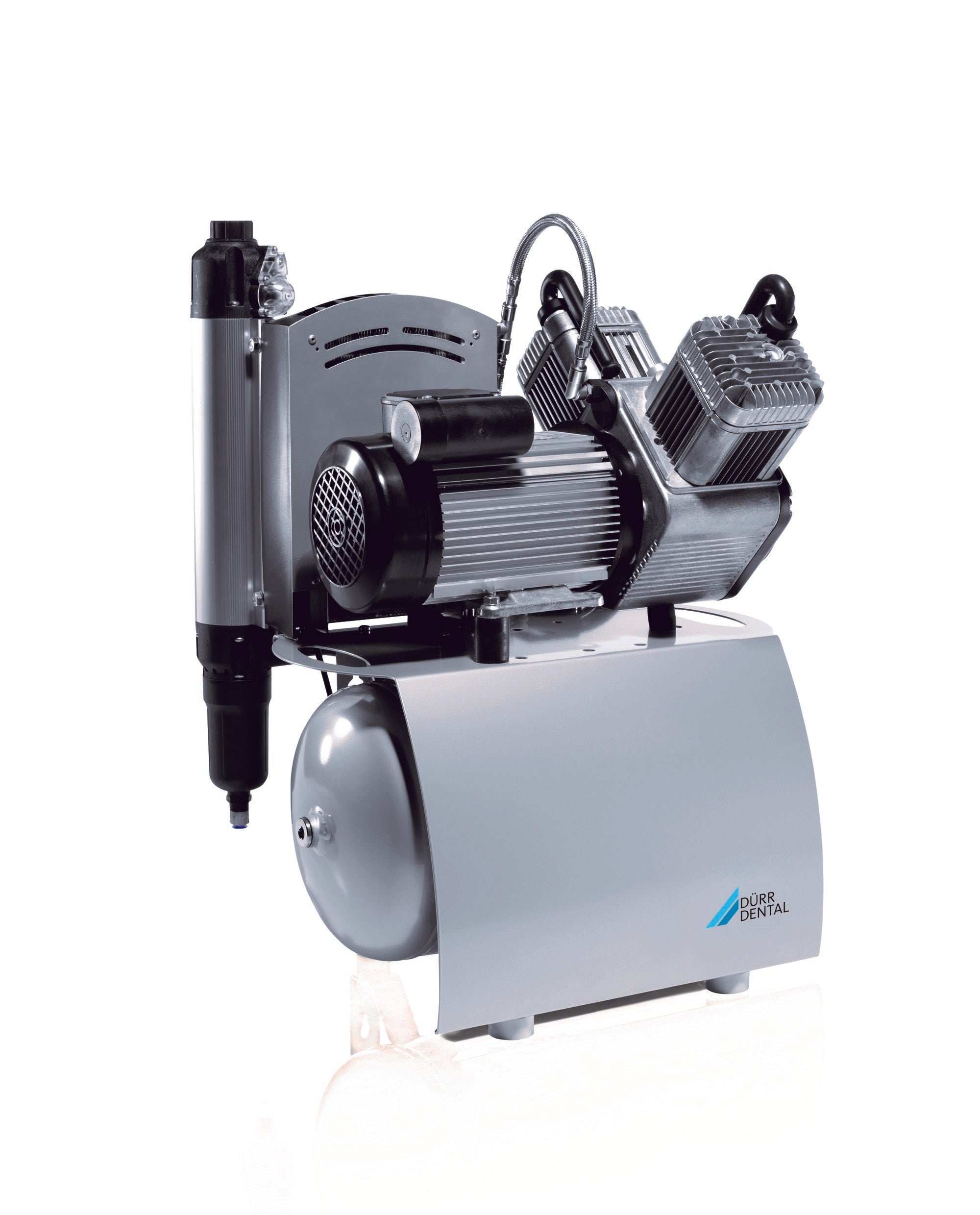

With its 2-cylinder V unit, the Duo is the classic among the compact compressors with 20 litre tank.

For two operators.

Unit for cleaning and care of handpieces and elbows, other sterilisation and laboratory equipment also required compressed air. This has to be added to the number of operators.



Technical data:

Duo

Cylinders

2

Voltage (V 1~, Hz)

230/400 , 50-60

Suction power (per unit) (l/min)

140/150

Delivery (per unit) at 5 bar 1) (l/min 2))

115/130

Tank capacity (l)

20

Pressure range 3) (bar)

6 - 7.8

Noise level 4) dB(A)

approx. 66/69, in cabinet approx. 55/61

Dimensions (H x W x D cm)

70 x 49 x 46

Weight (kg)

47

1) Delivery per unit at 5 bar without dry air
2) Power bandwidths result from the mains frequency 50/60 Hz
3) A pressure reducer is available as an option
4) Average values at 5 bar
