Belmont EURUS S6

Availability: In stock

Easy to set up. Comes with detailed user and service manuals or you can contact our technical support team at anytime for additional support over the phone on 03-93316796

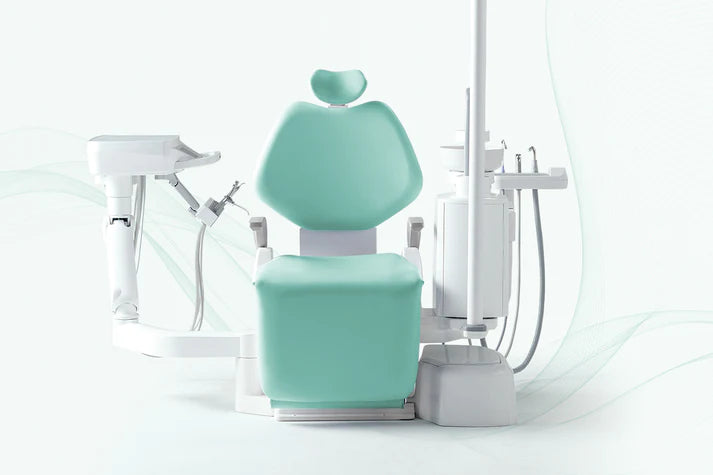

Belmont EURUS S6 Dental Chairhair

  • Smooth, Comfortable and Relaxing

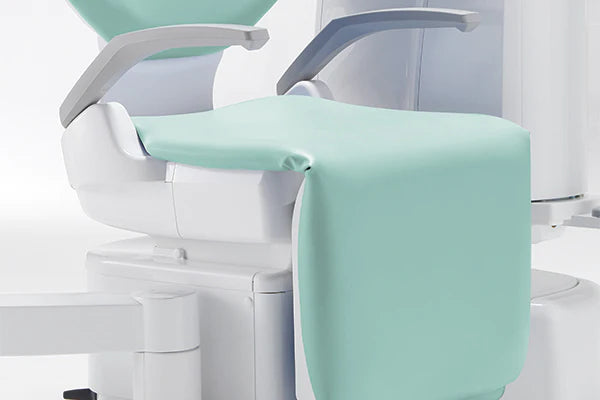

    The hydraulic mechanism ensures smooth and quiet movement , while folding legrest chair enabling easy access for all patients, especially children, elderly and patients using a wheelchair.
    It also suitable for orthodontic therapy to examine the patient's dentition from the 6 o'clock position.

    The new twin-axis headrest system, capable of making a wide range of adjustments, can be fine-tuned in increments of 7.5 degrees, accommodating patients from children to adults.

    Power headrest option

    - Stressless headrest with the full 120 mm stroke and the easily adjustable neck angle
    - Motorised headrest with hygienic hands-free operation


    Chair stick switch



    - Hands-free, hygienic and intuitive control (patent pending)



    Compact Space

    Workspace

    A compact design with folding legrest chair and base-mount unit perfectly suits to any clinics and ensures an efficient operating space.

    Positioning the doctor table and the assistant holder tray behind the chair also eases patient anxiety as they enter the treatment.
    The rotating spittoon ensures clear access for every patient as they rinse and gargle , whilist it also allows for easy cleaning and maintenance of the unit.

    Positioning the doctor table behind the chair enables assistants to prepare during consultations.

    The cuspidor rotates 90° outwards, making it possible for assistants to stand at the 3 or 4 o'clock position.

    Dr.Table

    Light as Air

    With an air braking system, the balance arm enhances mobility and flexibility during dental procedures, as the highly manoeuvrable and lightweight doctor table can be repositioned with the minimum of effort. This ensures complete convenience whilst helping to minimise operational fatigue.

    Low to High

    Arm Holder

    Completely versatile and flexible to accommodate every treatment requirement, the table is held by a flexible arm which delivers a vertical range motion of 770mm to 900mm.

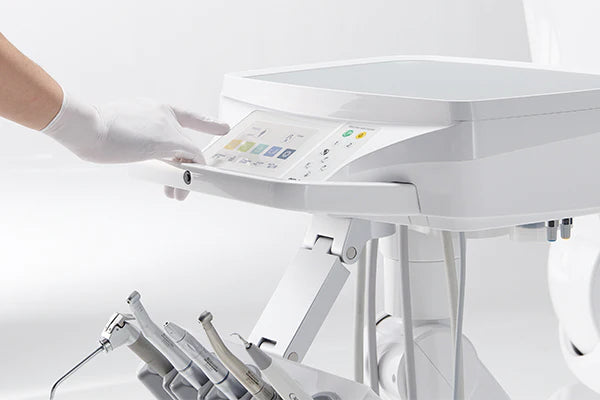

    Handle - ideally suited for touch-panel operation

    The handle is not only designed for an easy hold-and-move motion, it also provides an ideal resting position for the hand. This reduces stress and fatigue, and it facilitates reliable touch-panel operation.

    Instrument holder's position

    Designed to be independent from the table, the instrument holder can be freely adjusted via a three-axis adjustment mechanism to achieve the best working position for the dentist.

    Hose guide

    The smooth, frictionless motion of the roller frees the dentist and dental assistant from the weight of the hose when drawing out dental instruments. This simple, yet ingenious design minimises strain from a working process that is repeated frequently throughout the day.

    Intuitive Control

    Your Style at the Touch of a Finger

    Interface

    Designed to improve efficiency and reduce stress during treatments, the screen only displays necessary information when a handpiece is selected and picked up. This allows the dentist to concentrate on the treatment at hand as well as the patient, without unnecessary distraction.

    Motor



    - Four different settings can be saved, allowing intuitive operation


    - Rpm, torque and rotational direction choosable with one touch of the screen



    Scaler



    - Treatment models (periodontal, root canal and scaling) choosable with one touch of the screen



    Sideways operation

    A new slide foot controller allows for precision adjustment via sideways position motions and step-on activation. Maximum RPM can be set for the handpiece quickly and intuitively.

    Providing Quality

    Cuspidor

    The cuspidor has been expanded to offer larger capacity and easier access which, with the separator, ensures the highest levels of hygiene are maintained.

    LED Indicator option

    - A safety indicator that shows the lock-statuses of the dental chair and handpieces.

    Suction system

    - The unit provides effective and reliable suction increased by *185%.

    -Available with twin suction, which proves useful for more intensive surgical procedures.

    *Comparison of our conventional products under our conditions.

    Hygiene Options

    Improved Cleaning Performance

    Cleanliness

    Hygiene inside the chair unit is maintained by water line flushing, which means that patient-friendly treatments can be administered in complete safety and confidence. As an environmentally friendly option, the unit comes with a separator, or a separator with an amalgam collector, to reduce the need for everyday maintenance.

    Autoclavable holder option

    - Autoclavable outlets are detachable for cleaning

    Suction line clean system option

    - Prevents debris build up in the suction hoses.

    Detachable light components option

    - Removable lens cover and autoclavable light handle
    - Easy to clean by single lever action

    Flushing system option

    - Inhibits biofilm build up and bacterial growth in the handpieces hoses.

    Water bottle option

    - Clean water bottle for handpieces and the cupfiller is located under the doctor table.

    Variations

    S6 Standard

    【 Chair 】
    Folding Legrest Chair
    【 Unit Mount Type 】
    Chair Mount Cuspidor & Base Mount Dr. Table
    Chair Mount Cuspidor & Cart
    【 Delivery Type 】
    Holder/Place
    【 Light 】
    Unit Mount LED Light

    S6 VacPac

    【 Chair 】
    Folding Legrest Chair
    【 Unit Mount Type 】
    VacPac & Base Mount Dr. Table
    VacPac & Cart
    【 Delivery Type 】
    Holder/Place
    【 Light 】
    Unit Mount LED Light

    S6 Without Cuspidor

    【 Chair 】
    Folding Legrest Chair
    【 Unit Mount Type 】
    Base Mount Dr. Table
    Cart
    【 Delivery Type 】
    Holder/Place
    【 Light 】
    Unit Mount LED Light

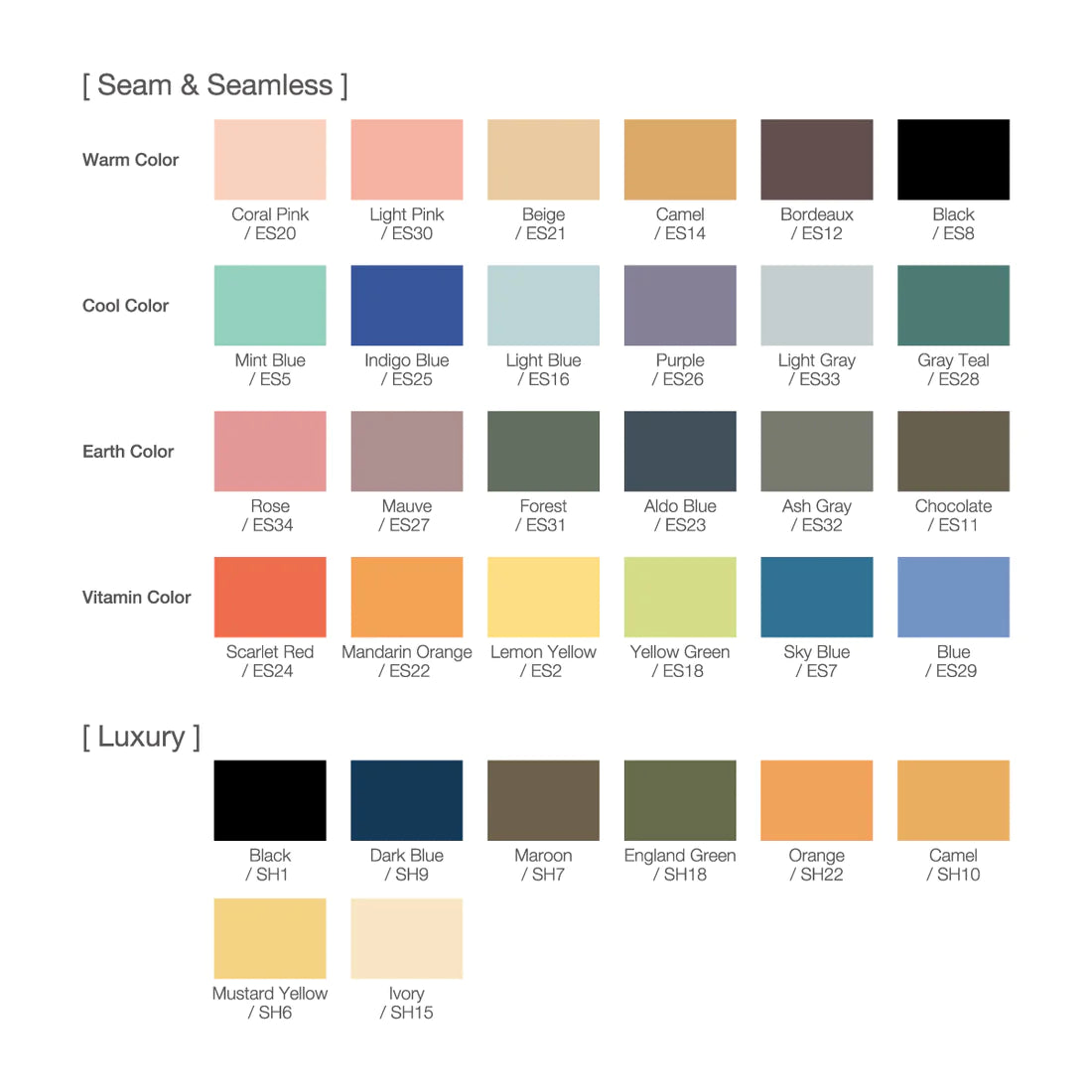

    Color Variations

    Color Coordination

    The upholstery can be color coordinated to suit the interior aspects and design of your dental clinic from four themes: Warm, Cool, Earth and Vitamin; and from three upholstery styles: seamless, seam and luxury.
