Durr - Duo Tandem
Easy to set up. Comes with detailed user and service manuals or you can contact our technical support team at anytime for additional support over the phone on (03) 7003 2234
Durr - Duo Tandem

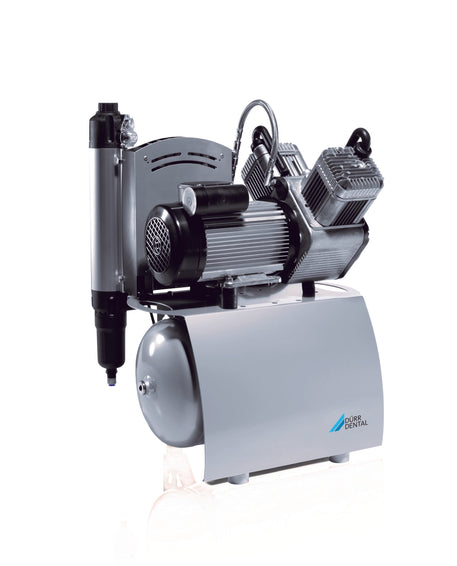

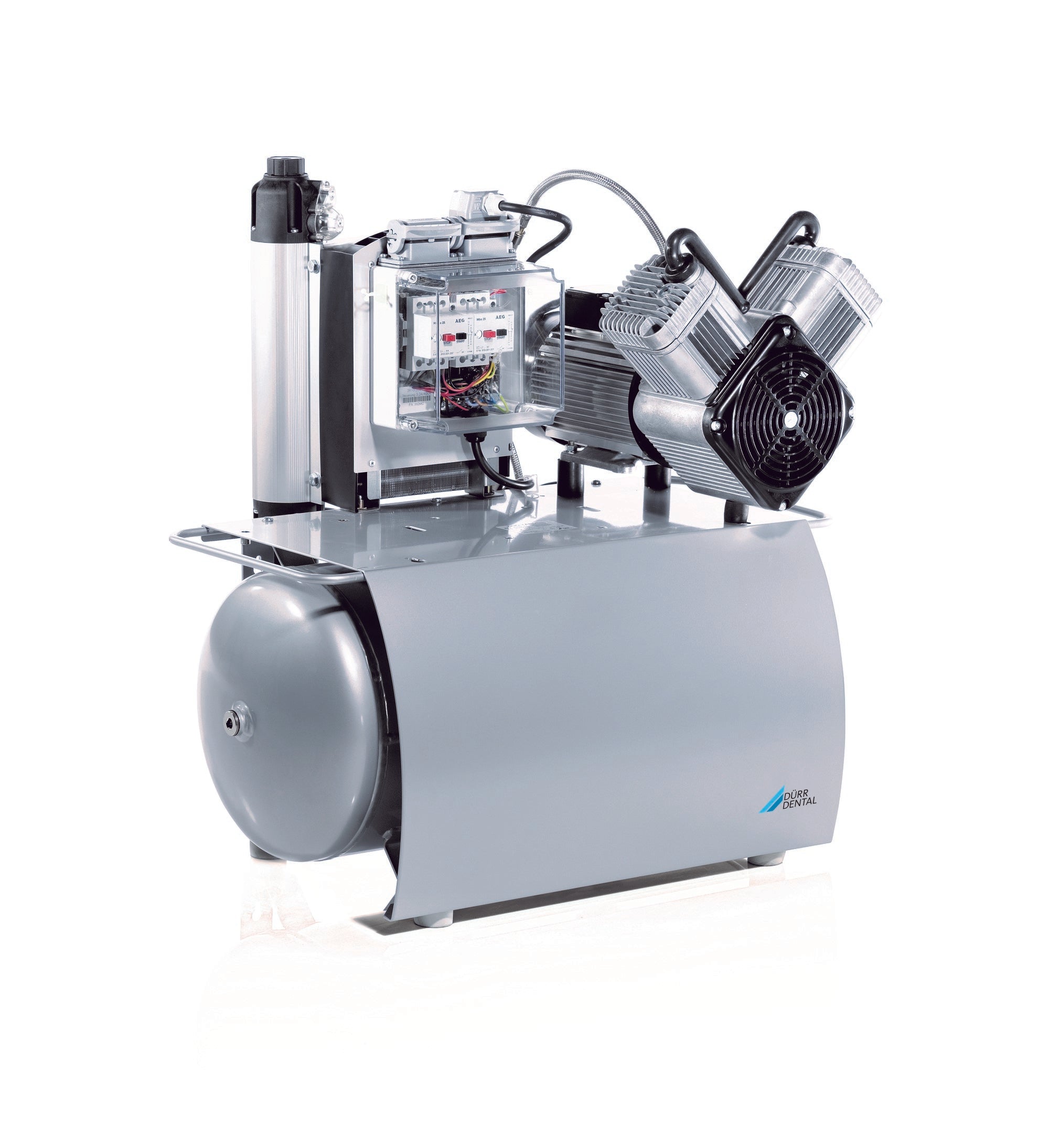

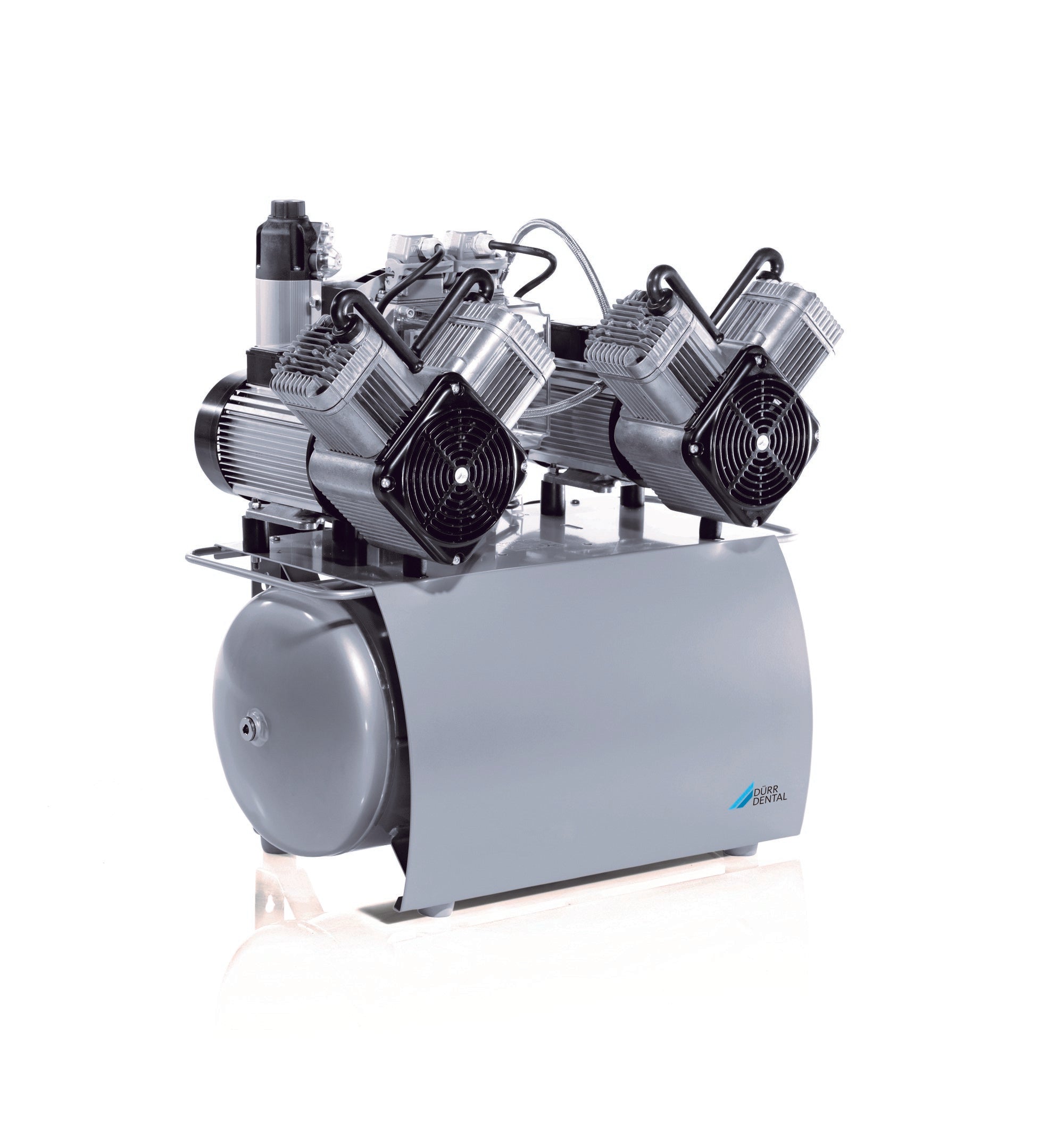

Duo Tandem
Duo Tandem is the flexible solution for growing power requirements Equipped with a 50 litre tank, it operates with either one or two units.
For two (1 unit) or four operators.
Unit for cleaning and care of handpieces and elbows, other sterilisation and laboratory equipment also required compressed air. This has to be added to the number of operators.
Go digital. Tandem compressors with electronic controls.
This innovative control technology has features which make the regulation and monitoring of your compressor even easier and safer. In addition to electronically tuning and adjusting the pressure range to meet the exact need, it also offers a digital display of the air quality and operating pressure of the compressor. Control of the aggregate is oriented toward consumption and avoids unnecessary parallel work by both aggregates.
|
Technical data: |
Duo Tandem |
|
Cylinders |
2/4 |
|
Voltage (V 3~, Hz) |
400, 50/60 |
|
Suction power (per unit) (l/min) |
140/150 |
|
Delivery (per unit) at 5 bar 1) (l/min 2)) |
115/130 |
|
Tank capacity (l) |
50 |
|
Pressure range 3) (bar) |
6 - 7.8 |
|
Noise level with 1 unit 4) dB(A) |
approx. 68/70, in cabinet approx. 54 |
|
Noise level with 2 units 4) db(A) |
approx. 69/74 |
|
Dimensions (H x W x D cm) |
76 x 79 x 52 |
|
Weight (kg) |
with 1 unit 64 with 2 units 90 |
1) Delivery per unit at 5 bar without dry air
2) Power bandwidths result from the mains frequency 50/60 Hz
3) A pressure reducer is available as an option
4) Average values at 5 bar
